QWS1000 plunger fracturing pump assembly

The QWS 1000 offers a similar design as the FT-600S with its small footprint, but offers a larger power output.  The QWS 1000 can also be set up in

 the back-to-back configuration to perform acidizing, cementing, gravel packing, and snubbing operations.

APPLICATIONS:Acidizing, cementing, gravelpacking, snubbing.

Rated Max Brake HP..............................1,000 BHP  (746 Kw)

Maximum Rod Load....................100,000 Lbs. (45,359 kg)

Stroke Length...............................................6" (152.4 mm)

Gear Ratio...............................................................4.61:1

Length.........................................................50" (1,270 mm)

Width...........................................................73" (1,854 mm)

Height............................................................24" (609 mm)

Weight Dry (Approx.)...............................7,040# (3,193 kg)

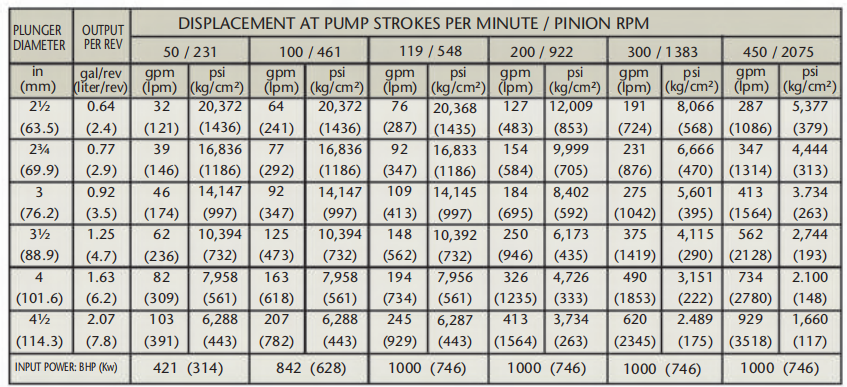

FT-1000QWS Performance Data

Based on 90% ME and 100% VE - Intermittent Service Only.
