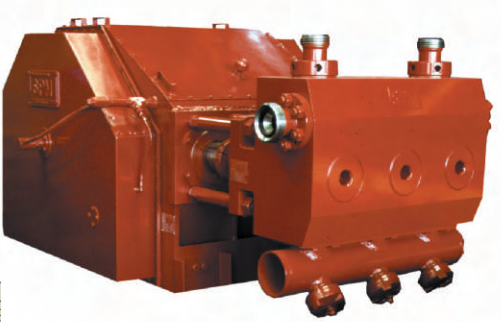

TWS-2250 plunger fracturing pump assembly

pressure and flow ratings in a smaller package than the large quintuplex pumps offered by Weir SPM.

APPLICATIONS: Fracturing.

Rated Max Brake HP..........................2,250BHP (1,641Kw)

Maximum Rod Load..................225,000 Lbs. (102,060 kg)

Stroke Length................................................8"(203.2mm)

Gear Ratio..............................................................6.353:1

Length..................................................893/4" (2,280 mm)

Width....................................................593/4" (1,518 mm)

Height...................................................441/4" (1,124 mm)

Weight Dry (Approx.).............................12,680# (5,751 kg)

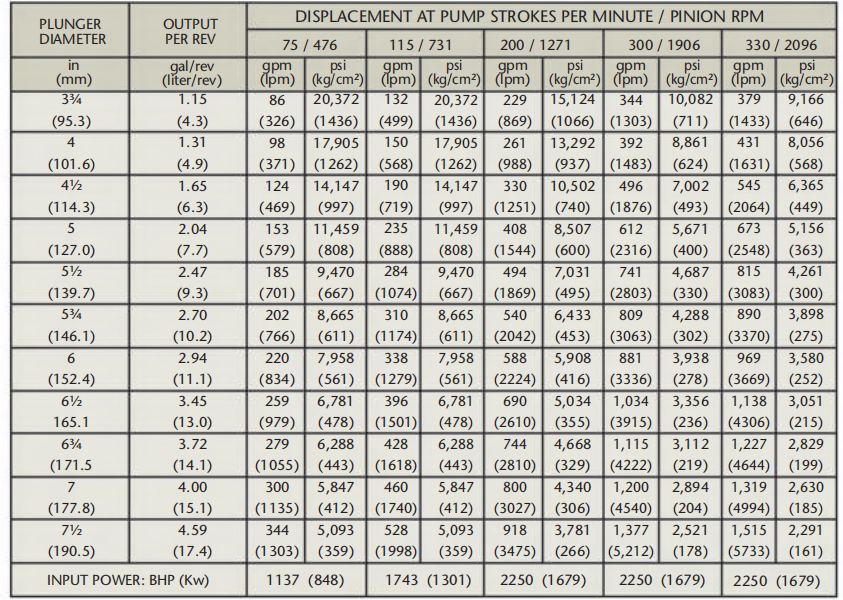

TWS-2250 Performance Data

Based on 90% ME and 100% VE - Intermittent Service Only.
