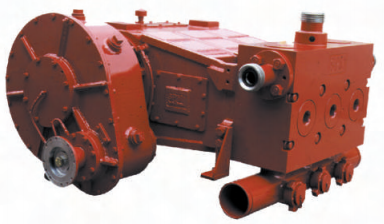

TWS 600S Type plunger fracturing pump assembly

The TWS-600 offers a versatile small footprint pump that can perform a variety of duties for the well service industry. The unique design features an offset crankshaft / crosshead design which.

substantially reduces the load on both the crosshead and crosshead guides as well as the main roller bearings supporting the crankshaft. The FT-600TWS can be utilized in a back-to-back configuration to perform rugged acidizing, cementing, gravel packing and snubbing operations.

Product Description:

The TWS-600 offers a versatile small footprint pump that can perform a variety of duties for the well service industry. The unique design features an offset crankshaft / crosshead design which.

substantially reduces the load on both the crosshead and crosshead guides as well as the main roller bearings supporting the crankshaft. The FT-600TWS can be utilized in a back-to-back configuration to perform rugged acidizing, cementing, gravel packing and snubbing operations.

APPLICATIONS:Acidizing, cementing, gravel packing, snubbing.

Ated Max. Brake HP..................................600 BHP (447 Kw)

Maximum Rod Load..........................100,000 Lbs. (43,360 kg)

Stroke Length....................................................6" (152.4 mm)

Gear Ratio......................................................................4.61:1

Length........................................................501/4" (1,276 mm)

Width.....................................................5215/16" (1,344 mm)

Height............................................................237/8" (607 mm)

Weight Dry (Approx.).....................................4,940# (2,040 kg)

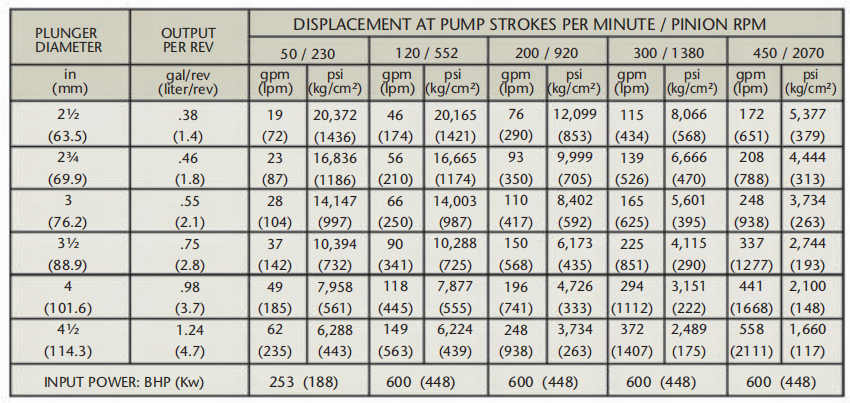

TWS 600S Performance Data
