Pulg Valves

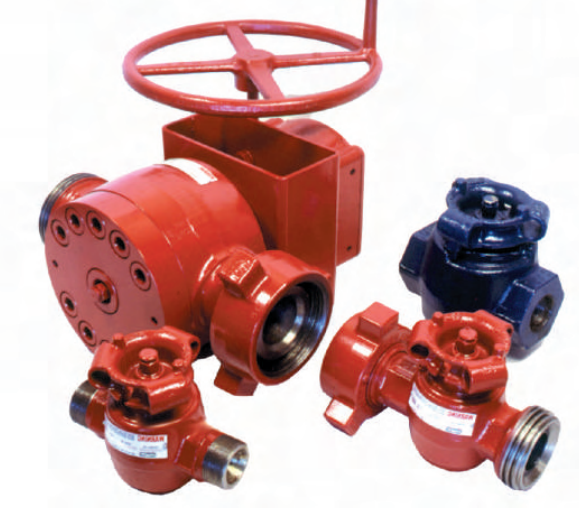

1", 1" X 2", 1½", and 2" Plug Valves high pressure plug valves are tough, field-proven units that provide dependable service for applications such as cementing, fracturing, acidizing, coiled tubing, and sand control.  Available in 1", 1" X 2", 1½” and 2" sizes and in pressure ratings to 15,000psi plug valves feature quality components throughout for greater dependability, minimum weight, and maximum strength. Plug valves are available in standard service and sour gas service models. Special models are available to 20,000 psi.

3" and 4" Plug Valves three-inch and four-inch plug valves are available in pressure ratings to 20,000 psi. Features include a flanged body for easier maintenance, integral inlets and outlets, hand crank, locked-open and shut gear drive standard, and multiple lubricating inlets. Standard service and sour gas service models are available.latest plug valve offering is the 3" SP150Manual Actuated Plug Valve.

Plug Valves

Size:2”-4”

CWP：6000-20000Psi

Temperature rate: -29--+121℃

Service： Std. or H2S

Standard: API 16C or NACE MR 0175

Technical Paremetes

Note: 1.Thread&Fig 602 connection can be available.

     2.6000Psi H2S service, please contact factory.
